An intermittently bonded ribbon production system is instrumental in crafting flexible fiber groups for contemporary, high-count cable architectures. It keeps fibers properly aligned for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.
In contrast with fully bonded ribbons, intermittent bonded ribbons feature small bond points at predetermined intervals. This strategic placement enables the fibers to maintain alignment while the ribbon can conform to circular loose tubes and other confined spaces.
Fiber network engineers apply this technique when faced with constraints in duct space, splice closures, and equipment racks. A properly engineered ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Fiber Coloring Machine Fiber Draw Tower Fiber Draw Tower
Main Takeaways
- An intermittent bonded ribbon production line supports flexible, high-density fiber layouts.
- Discrete bond points keep optical fibers organized without making the ribbon stiff.
- Flexible ribbons support higher fiber counts within small circular cable constructions.
- Consistent fiber alignment makes mass fusion splicing quicker and easier.
- Ribbon technology is used across data centers, telecom routes, and optical access networks.
Intermittently Bonded Ribbon Production Line Overview
Intermittently bonded ribbon manufacturing allows the creation of fiber designs that combine high density with practical handling. This method involves forming bonds at planned positions, allowing for the movement of fiber subunits between these points.
The method enables the incorporation of a higher number of fibers within constrained duct spaces. It also preserves the organized ribbon structure, essential for efficient splicing and cable assembly processes.
How Does An Intermittently Bonded Optical Fiber Ribbon Work?
An intermittent bonded fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain unencumbered, enabling the ribbon to adopt various configurations without rigidification.
The design is frequently known as a rollable, flexible, or spider web ribbon. It contrasts with the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
During splicing, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers can be packed into compact bundles, optimizing space utilization within the cable.
Why High-Density Fiber Networks Need Flexible Ribbon Technology
Fiber network planners must address the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure enables ribbon groups to be packed into smaller cable cores, preserving fiber order.
Fiber density ratio represents a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding helps increase this density ratio, allowing ribbon groups to occupy available spaces within the cable.
For network installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

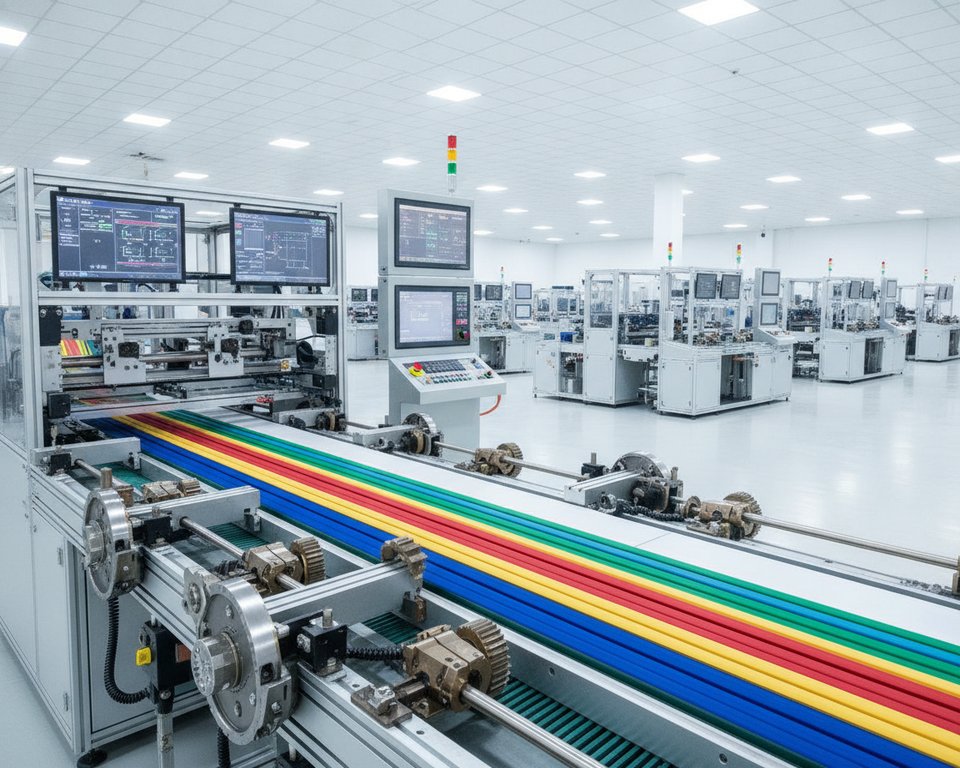

Intermittent Bonded Ribbon Production Line
| Ribbon Characteristic | Intermittently Bonded Ribbon Design | Traditional Continuous Ribbon |
|---|---|---|
| Bonding pattern | Discrete bonds at predetermined intervals | Bonding maintained continuously along the ribbon |
| Fiber form between bonds | Can bend, roll, or fold for dense packing | Remains predominantly flat and planar |
| Splicing configuration | Can return to a flat format for mass fusion splicing | Is continuously maintained in a flat ribbon shape |
| Cable packing role | Allows compact and flexible subunit positioning | Typically uses a fixed ribbon stack configuration |
| Common cable application | Flexible ribbon and high-density fiber cable designs | Traditional flat ribbon cable designs |
Intermittently Bonded Ribbon Materials And Construction
A flexible bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture supports compact cable arrangements while allowing effortless separation during handling, routing, and splicing.
The selection of materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must hold its fibers securely without imparting undue stiffness to the ribbon.
Optical Fiber Counts And Subunit Arrangement
Intermittent bonded ribbons can accommodate 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber ribbon commonly uses six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
Controlled gaps introduced between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Ribbon Construction Element | Typical Arrangement | Manufacturing Purpose |
|---|---|---|
| Ribbon fiber count | Configurations of 4, 8, 12, 24, or up to 36 fibers | Matches cable density and splice capacity |
| Fiber subunit layout | Pairs of adjacent fibers within each subunit | Supports controlled separation between groups |
| Fiber spacing in a subunit | Touching or up to 1.5 fiber diameters | Supports a small and consistent subunit profile |
| Subunit separation gap | 5 to 100 micrometers | Supports flexibility around bonded locations |
Wet-On-Wet Bonding And UV-Curable Resin
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
This technique generates a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
The UV-curable materials can combine at the interface before curing. This encourages molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Core Equipment In An Intermittent Bonded Ribbon Production Line
An optical ribbon line integrates advanced motion control with meticulous material handling. Each station helps fibers stay clean, aligned, and stable from the initial payoff to the final winding.
The production equipment supports adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to produce flexible custom ribbon cable, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control Equipment
Fiber payoff units supply individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
In a fiber ribbon line, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Discrete Bond Applicator And Coating Die
The coating die applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
A bond applicator then applies a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Equipment | Main Function | Manufacturing Benefit |
|---|---|---|
| Fiber payoff and tension unit | Feeds fibers at controlled tension | Helps prevent fiber twist and inconsistent loading |
| Subunit coating die | Forms coated fiber subunits | Keeps subunit dimensions and shape consistent |
| Bond deposition applicator | Places bonding resin at predetermined locations | Forms flexible connections between neighboring subunits |
| UV curing, cooling, and take-up unit | Cures and cools the ribbon before inspection and winding | Protects bond quality and preserves fiber order |
UV Curing, Cooling, And Ribbon Take-Up Equipment
UV energy cures the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
The take-up system winds the finished ribbon with low, even tension. Proper winding preserves the finished bonded structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Alignment, Preparation, And Color Sequence Management
A stable ribbon cable begins with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification During Splicing And Maintenance
A clearly defined fiber color sequence is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Fiber Number | Standard Color | Process Purpose |
|---|---|---|
| 01 | Blue | Begins the recognized fiber color sequence |
| 02 | Orange | Allows quick identification during handling |
| 03 | Standard green | Helps preserve the established fiber order |
| 4 | Standard brown | Helps verify subunit placement |
| 5 | Standard slate | Provides distinct mid-sequence marking |
| 6 | Standard white | Supports clear visibility during inspection |
| 07 | Standard red | Improves traceability in splicing records |
| 8 | Standard black | Helps technicians recognize sequence position in trays |
| 09 | Yellow | Assists field restoration activities |
| 10 | Standard violet | Separates late-sequence fibers clearly |
| Position 11 | Rose | Helps maintain clarity in higher-count ribbon layouts |
| 12 | Aqua | Marks the final position in the standard color order |
Avoiding Fiber Twist And Tension Imbalance
Payoff units and guides are instrumental in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators closely monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
Intermittent Bond Application And UV Curing Process
Intermittent bonding connects fiber subunits without solidifying the ribbon into a rigid form. This method allows dense routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Bonds At Predetermined Intervals
The production equipment applies bonding points at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
A precise applicator dispenses a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends help minimize localized stress changes when the cable bends or twists.
Building Strong Yet Flexible Bond Interfaces
The wet-on-wet method involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting gradient influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features improve resistance to bond peeling while facilitating separation when required.
Controlling Curing Performance
UV lamps must provide consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Operators closely monitor bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Quality Control For Fiber Ribbon And Flexible Flat Cable Output
Ensuring each flat ribbon cable’s integrity is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Routine inspection is essential in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Inspection Of Bond Spacing, Ribbon Width, And Thickness
The distance between bonding points is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection protocols are in place to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Quality Control Point | What Is Checked | Quality Benefit |
|---|---|---|
| Fiber sequence identification | Fiber number, color order, and placement | Supports correct splicing and maintenance work |
| Bonding pattern | Bond location, spacing, and subunit connection | Maintains flexibility and fiber organization |
| Ribbon profile | Dimensional width, thickness, and flatness | Supports compatibility with handling and splice equipment |
| Surface condition | UV cure state, coating coverage, and defects | Helps minimize handling damage during winding |
Optical And Mechanical Performance Testing
Mechanical assessments focus on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical inspection involves evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Optical attenuation checks and handling evaluations are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Efficiency, Automation, And Precision Winding
Efficient ribbon manufacturing depends on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Production Line Synchronization And Process Data Monitoring
Production controls coordinate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Manufacturing data records capture fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Payoff tension prevents fiber stretch and slack.
- Controlled bond timing maintains regular intervals between bond points.
- Regular dimensional checks reveal ribbon width or thickness deviations early.
- Winding data facilitates lot tracking and downstream handling.
Winding Ribbon For Downstream Cable Production
A precision cable winder helps ensure the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For custom ribbon cables, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Monitoring Area | Primary Control Focus | Downstream Process Benefit |
|---|---|---|
| Optical fiber payoff | Controlled tension and accurate color sequencing | Orderly ribbon placement during cable assembly |
| Intermittent bond application | Consistent spacing and resin volume | Consistent flexible behavior in downstream operations |
| UV curing | Stable UV lamp output and cure exposure | Reliable bond strength before winding |
| Cable precision winder | Even traverse, spool tension, and layer control | Reliable payout during central tube or loose tube processing |
Ribbon Cable Applications, Fusion Splicing, And Connector Planning
Ribbon fiber is widely used in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A properly planned ribbon cable system enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Advantages Of Mass Fusion Splicing
Ribbon fusion equipment enables the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
This approach minimizes handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
Loose tube cable, by comparison necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Planning Connections For Dense Fiber Links
Multi-fiber links frequently employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Connection planning also includes transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Planning Item | Primary Control | Common Application |
|---|---|---|
| Fiber ribbon count | Required splice capacity and cassette configuration | 12-fiber and 24-fiber backbone links |
| MPO or MTP cable connector | Connector polarity, gender, and port compatibility | Data center trunks and 5G equipment rooms |
| Fanout or harness cable | Breakout from multi-fiber to single-fiber ports | Network switch connections and patch fields |
| Link loss budget | Allowed loss from splices, connectors, and fiber length | High-speed optical transmission routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Line Projects
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to ensure consistent processing, facilitate clear operator control, and enable seamless integration into production lines.
For manufacturers planning an intermittent bonded ribbon production line, SHWY supports every stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Optical Fiber And Cable Machinery Experience
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
During 2020, SHWY moved to independent operation, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
SHWY Production Equipment Portfolio
The SHWY equipment portfolio includes a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For fiber ribbon manufacturing projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
The broader SHWY portfolio also includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Conclusion
An intermittent bonded ribbon production line integrates fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step ensures the preservation of fiber order while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resulting ribbon structure provides efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Comprehensive project planning reaches beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
